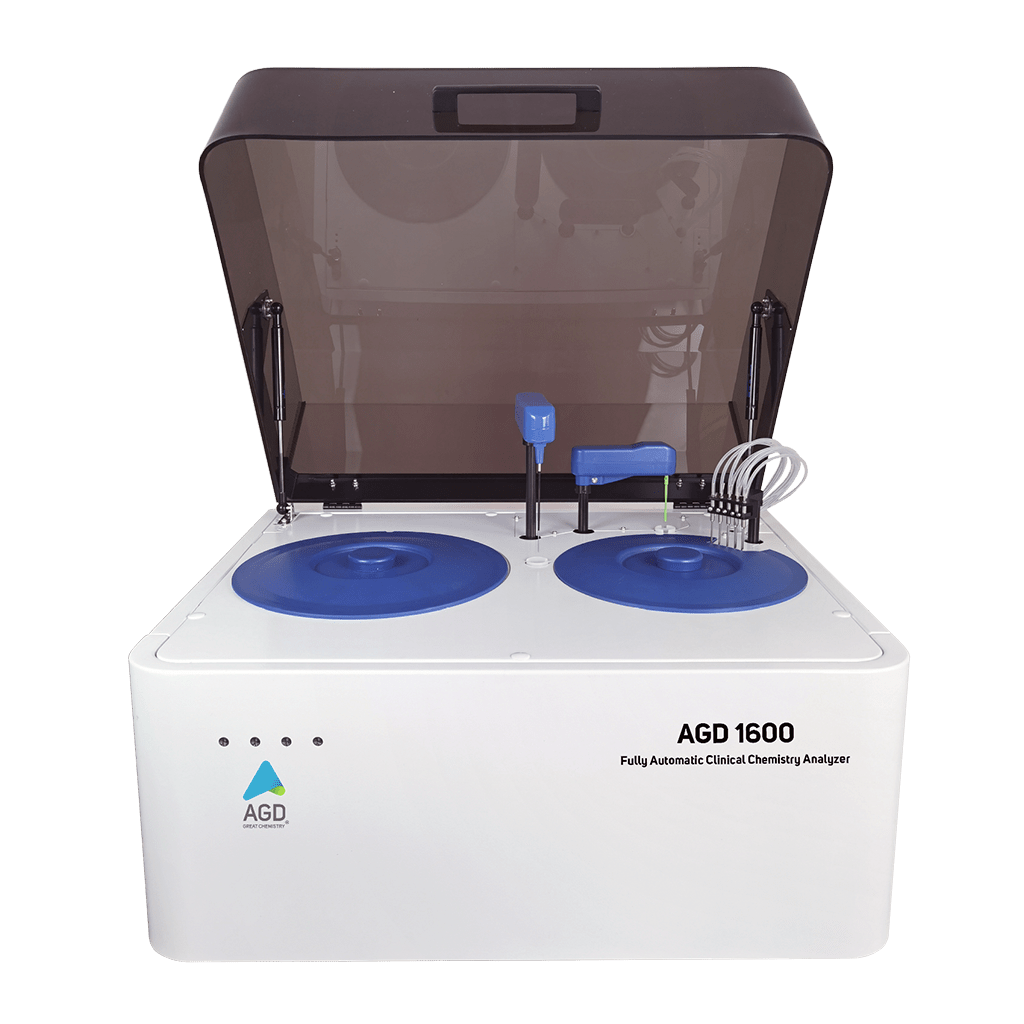

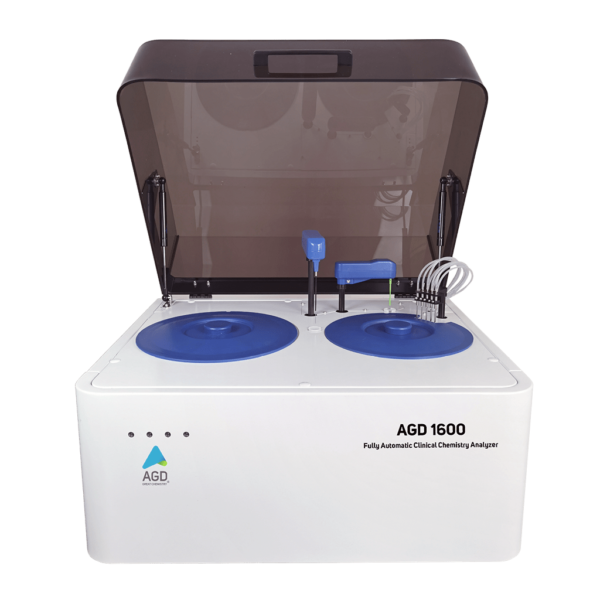

AGD 1600 Fully Automatic Clinical Chemistry Analyzer

A complete walk away system with exclusive automated features offers good reliability, efficiency & highly accurate results.

Salient Features:

Parameter	Description
Throughput	160 tests per hour
Measuring Principles	Absorbance Photometry, Immunoturbidimetry
Assay Method	Endpoint, Kinetic, Two-Point/ Fixed Time, Linear/ Non-linear multipoint calibration, Bichromatic/ Monochromatic, Single/ Dual Reagent chemistry
Reagent/ Sample Tray	Up to 40 Sample Positions Up to 36 Reagent Positions Onboard cooling <= 15°C
Reagent Volume	1μL to 400μL
Sample Volume	1μL to 100μL
Reaction Volume	200μL to 300μL
Reagent/ Sample Probe	2 Probes 1 Sample reagent Probe 1 Mixer
Laundry System	Independent washing station for Probe and Mixer Onboard 4 Step Washing for Cuvettes
Sample Dilution	Programmable Pre – dilution/ Auto – dilution available
Optical System	8 Static Wavelength (340 to 670nm) Halogen lamp Absorbance range 0 to 3.5 Abs
Control and Calibration	QC with L J plot, Westgard rules Linear, non-linear multi standard, K factor
Water Consumption	2.5 litre/hour
