AGD 2260 Fully Automatic Clinical Chemistry Analyzer

AGD 2260 Fully Automatic Clinical Chemistry Analyzer

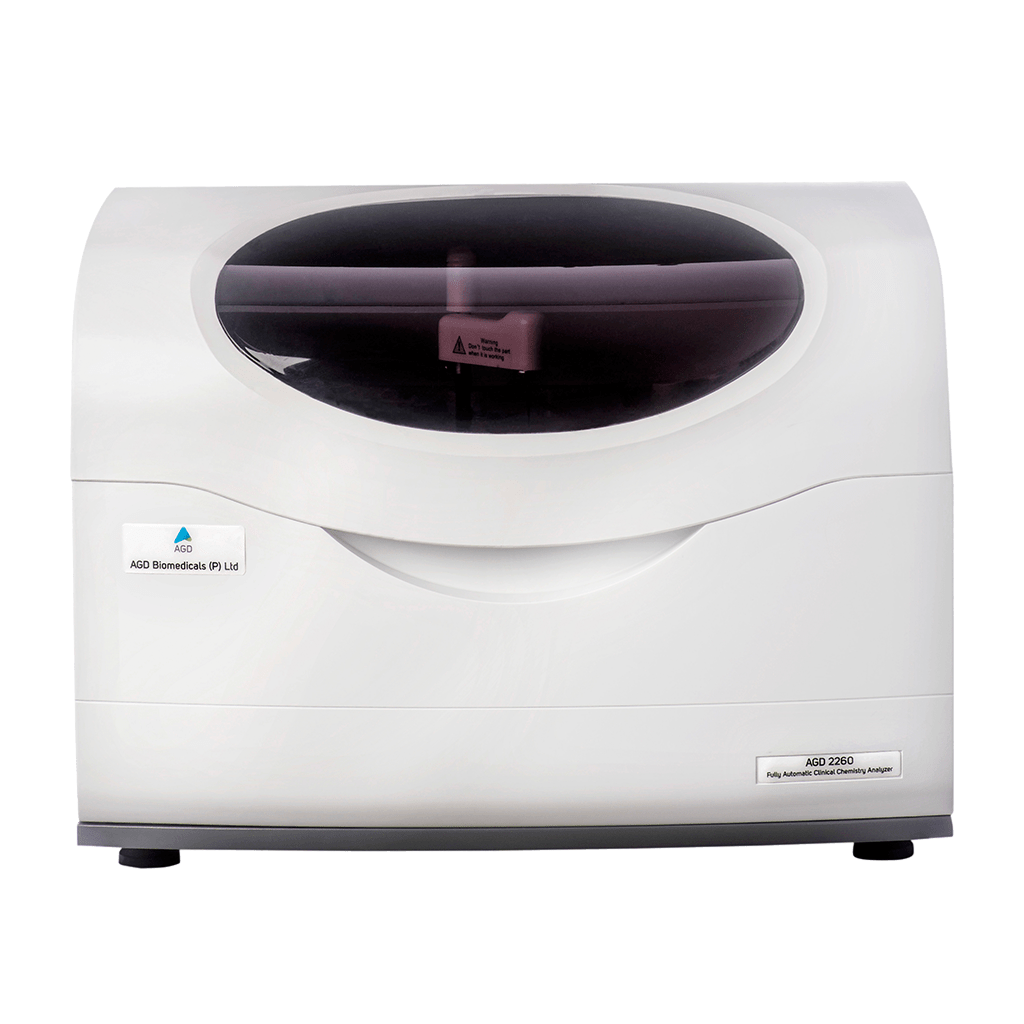

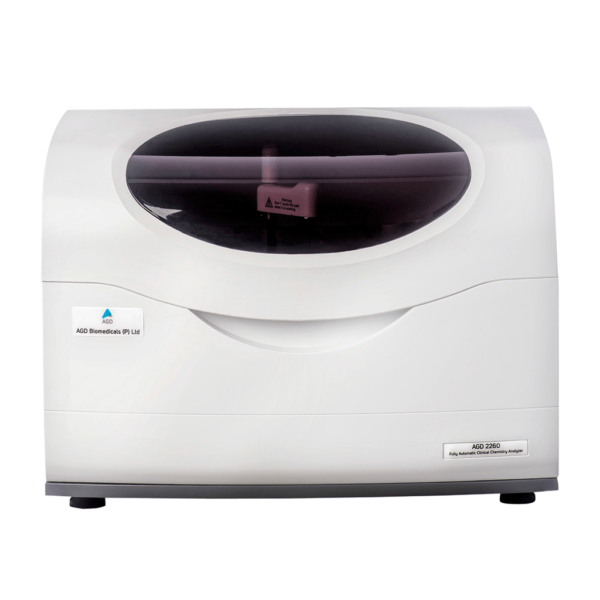

AGD 2260 is a compact and bench top analyzer with throughput of 200 tests per hour.

Enquire Now
Categories , ,

Description

AGD 2260 is a compact and bench top analyzer with throughput of 200 tests per hour.

Salient Features:

  • 40 positions for samples, STAT,Calibrator, and QC
  • 40 reagents positions for R1 and R2
  • Independent mixing probe
  • 8 step laundry system
  • Memory up to 200,000 patient data
  • User friendly intellectual software

Technical Specifications:

Parameter Description
Throughput Up to 200 tests per hour
Measuring Principles Absorbance Photometry, Turbidimetry, End-point, Two-point, Kinetic /Dual/ Reagent Chemistry, Monochromatic/ Bichromatic
Sample Arrangement
  • 40 positions for sample, STAT, Calibrator and QC
  • Sample Volume: 2μL to 50μL, step by 0.1μL
  • Compatible with primary collection tube, minimal tube, sample cup, etc.
Reagent Arrangement
  • 40 reagent positions for R1 and R2
  • Volume Range: 10μL to 500μL, step by 1μL
  • Reagent Probe: Liquid level detection, collision protection function
  • On board cooling (2°C to 8°C)
Laundry System
  • Needles: 8 step washing sequence.
  • Water Consumption: Upto 4 l/ hr
Reaction System
  • 90 special cuvettes
  • Length of Cuvette: 6mm
  • Reaction Volume: 200μL to 500μL
  • Reaction Time: 8 to 10 mins
  • Reaction Temperature: 37°C ±0.1°C
Optical System Independent mixing probe
9 wavelengths 300 to 700nm
Absorbance range 0 to 4.00Abs
Spectrophotometry Rear spectrophotometry
Lamp Tungsten halogen lamp
