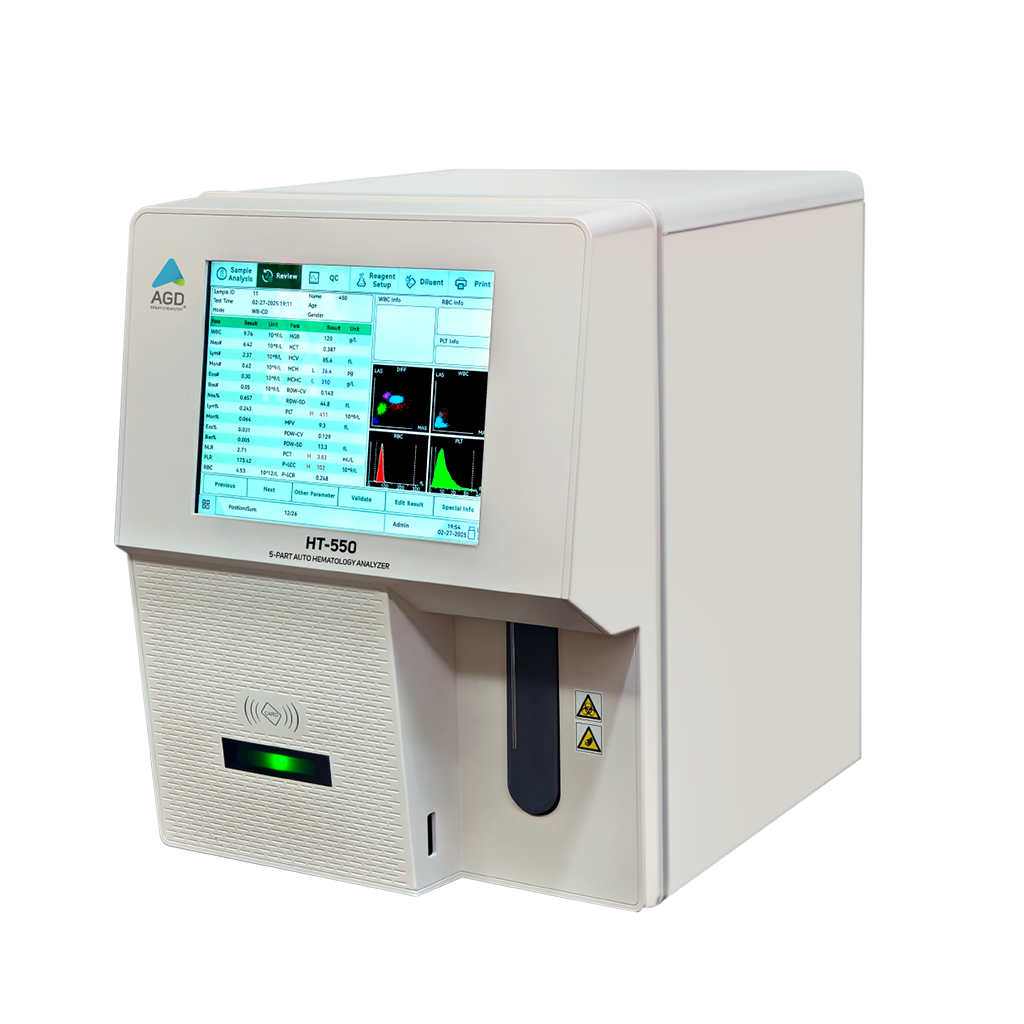

AGD HT-550

AGD HT-550

The HT-550, 5-Part Auto Hematology Analyzer is an advanced diagnostic instrument designed for comprehensive blood analysis. It offers high-precision and fully automated testing, providing differential white blood cell (WBC) counts, red blood cell (RBC) parameters, platelet counts, and other critical hematological indices. With Tri-angle laser scattering and flow cytometry for precise WBC differentiation and counting, impedance technology for RBC and PLT measurement, and a cyanide-free method for hemoglobin (HGB) analysis, ensures high accuracy, efficiency, and environmental safety in hematological diagnostics.
Enquire Now
Categories , ,

Description

The HT-550, 5-Part Auto Hematology Analyzer is an advanced diagnostic instrument designed for comprehensive blood analysis. It offers high-precision and fully automated testing, providing differential white blood cell (WBC) counts, red blood cell (RBC) parameters, platelet counts, and other critical hematological indices. With Tri-angle laser scattering and flow cytometry for precise WBC differentiation and counting, impedance technology for RBC and PLT measurement, and a cyanide-free method for hemoglobin (HGB) analysis, ensures high accuracy, efficiency, and environmental safety in hematological diagnostics.

Salient Features:

  • 36 parameters: WBC, LYM%, MON%, NEU%, BAS%, EOS%, LYM#, MON#, NEU#, EOS#, BAS#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW-CV, PDW-SD, PCT, P-LCR, P-LCC, NLR, PLR, *LIC%,*LIC#, *ALY%, *ALY#, *NRBC%, *NRBC#, *PLT Clumps%, *PLT Clumps#
  • 2 histograms for RBC and PLT, 4 scattergrams for WBC differential
  • Throughput of 60 Samples per hour
  • 3 sample modes: Whole blood, Capillary WB, and Predilute mode
  • Smart counting mode for low WBC and low platelet count
  • 28 pathological flags
  • 10.4-inch color touch screen (LCD), Resolution: 800×600

Technical Specifications:

Parameter Description
Principle Tri-angle laser scattering, flow cytometry for WBC differentiation and count Impedance for RBC and PLT count Cyanide-free method for HGB
Parameters 28 parameters: WBC, LYM%, MON%, NEU%, BAS%, EOS%, LYM#, MON#, NEU#, EOS#, BAS#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW-CV, PDW-SD, PCT, P-LCR, P-LCC, NLR, PLR 8 research parameters: LIC%, LIC#, ALY%, ALY#, NRBC%, NRBC#, PLT Clumps%, PLT Clumps#
Histogram & Scattergram 2 histograms for RBC and PLT, 4 scattergrams for WBC differential
Throughput 60 samples per hour
Calibration Manual, auto and fresh blood calibration
Quality control 3 level QC, LJ graph, X-B
Sample volume
  • Whole blood and capillary whole blood mode: ≤20μL under CBC+DIFF mode
  • Whole blood and capillary whole blood mode: ≤12μL under CBC mode
  • Prediluted mode: ≤20μL under both CBC and CBC+DIFF modes
Reagents UltraDil 5-Diff, UltraLyse LH, UltraLyse Diff
Flags 28 Flags for abnormal blood cell differential or morphology
Display 10.4 inch color touch screen (LCD), Resolution: 800 x 600
Storage 60,000 Sample results with scattergram & Histogram
Printout Built-in thermal printer, Support external printer
Interface 4 USB ports, 1 Network port, 1DB9 serial port HL7 protocol, Support bi-directional LIS
Power AC 100-240V, 50/60 ±1Hz, 200VA

Advanced Technology:

HT-550isareal5-Partautohematalogyanalyzer.ltuses3reagentstodifferentiateandcountblood cells.

  • UltraDil5-Diff
  • UltraLyseLH
  • UltraLyseDiff UltraLyseDiffisaddedtodifferentiate4typesofWBC(Lym,Mon,NeuandEos),andLHlyseisusedto differentiateBasoandcountWBC.Besides,thereisadedicatedchannelforBasodifferentiation. Surroundedwithsheathfluid(diluent),bloodcellspassthroughthecenteroftheflowcellonebyoneat highspeed.The trianglelaserscatteringcontributestomoreaccuratecounting.Whenpassingthrough theflowcell,bloodcellsareexposedtoalaserbeam.Theintensityofscatterlightreflectsthebloodcell sizeandintracellulardensity.Theopticaldetectorreceivesscatterlightsignalsandconvertstheminto electricalpulses.Pulsedataiscollectedtogenerateascattergram.

Proven Technology:

Thecountprincipleoftheinstrumentisbasedonthemeasurementof changesinelectricalresistanceproducedbyabloodcellpassingthrough anaperturesensor.Passingthroughthemagnificationcircuit,thevoltage signalwillbemagnified,whichwillbederivedintoimpulsesandthen analyticalhistogramwillbegenerated. Afteradditionoflyseintheblood,theredbloodcellwillrapidlybebroken downandreleasehemoglobin.Hemoglobinandlyseformsanewmixture, whichcanabsorbthewavelengthof530nm. Theconcentrationofthesamplehemoglobiniscalculatedbycomparing theabsorbencybetweenthepurediluentandthesample.
