AVE-772 Fully Automated Integrated Urine Analyzer

Description

Specifications:

Throughput
Chemistry 240T/H
Microscopy 50-120T/H
Chem+Micro 50-120T/H
Min. sample volume: 5ml
Sample preparation: Native sample
Built-in barcode reader: Yes
Counting Chamber: 3 channels
Detection rate: 98% for sample at concentration of 5 cells/µl
Accuracy: -For chemistry measurement, comparing to reference solution, results are within tolerance of one level or no false positive and negative;
-For microscopy measurement, ≥95%
Repeatability: -For chemistry measurement, CV≤1%; -For microscopy measurement, CV≤7%
Carryover: At concentration of 4600-5400 cells/µl, 1 cell/µl; At concentration of 9200-10800 cells/µl, 2 cells/µl
Verification: Full-view field images + segmented images
Report: Comprehensive results with images and diagrams
Sampler: Loading capacity of 60 samples
Strip tank capacity: 200 strips
STAT: Available
Data interface: Bidirectional
LIS/HIS connection: Available
Computer:External
Results storage: 200,000 results
Dimensions: 825mmx647.5mmx514mm
Weight: 75kg

Measurement Technology:

Physical measurement: color, turbidity measured by RGB photo electric sensor; specific gravity measured by refractometer; conductivity measured by electrode method.
Chemistry measurement: CCD Capture Images
Microscopy measurement: Machine Vision Technology (Automated Morphological Microscopy). Through Artificial intelligent Reporting.

Physical Measurement

Independent PMC module automatically measures color, turbidity, specific gravity and conductivity.
More accurate SG result measured by refractometer
Chemistry Measurement
Patent strip feeding device.
Innovative sample sprinkling technology to avoid undetection.
Test results traceable with images.

Microscopy Measurement

Made strictly according to ISLH Recommended Reference Procedure for the Enumeration of Particles in Urine.
Uncentrifuged urine samples at cut-off concentration level of 3-5 cells/µl are detectable.
Precise morphological analysis of RBC helps to determine the source of hematuria.

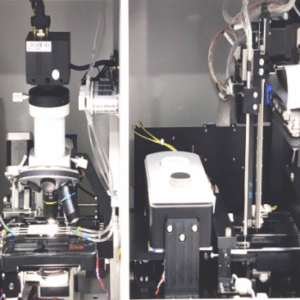

: Inbuilt Automated Microscope

Detected Parameters:

Chemistry Measurements: 11,14 parameters available.
Microscopy Measurements: RBC, WBC, Epithelial Cells, Crystal, Casts, Mucus, Yeast, Bacteria, etc.
Further sub-classification is available with manual on-screen verification.
Physical Measurements: color, turbidity, specific gravity and conductivity.
Extensional Measurement: pleuroperitoneal fluid, cerebrospinal fluid, gastric fluid, etc.

Advantages:

Unique design with both Chemistry and Micros-copy measurements integrated, which makes both measurements done by sampling once.
Measurement Modes Optional: chemistry, microscopy, or chemistry+microscopy.

Working Procedure:

Microscopy Measurement:

Made strictly according to ISLH Recommended Reference Procedure for the Enumeration of Particles in Urine.

Uncentrifuged urine samples at cut-off concentration level of 3-5 cells/µl are detectable.

Precise morphological analysis of RBC helps to determine the source of hematuria.

Standardized and confirmatory report with both images and diagrams available. Pop ups indicate on-screen verification with no need to redo the measurement.

Self-learning function continuously improves the recognition accuracy.

CFDA approved quality controls of four levels available.
