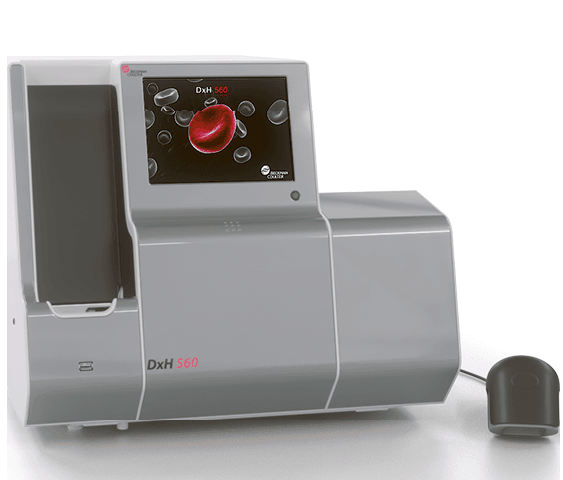

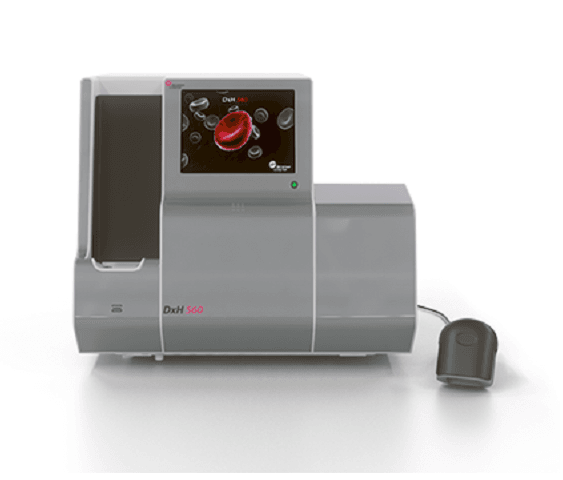

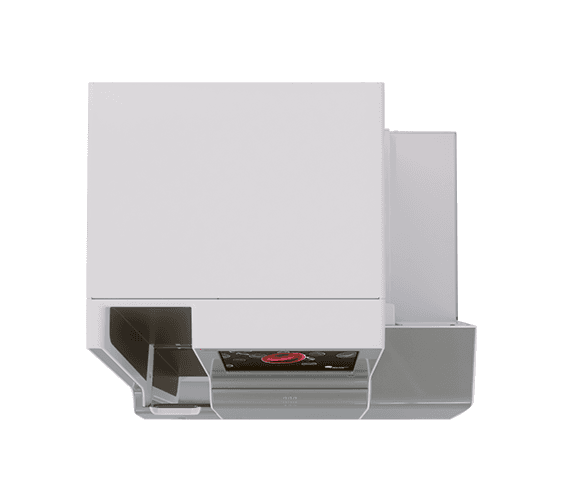

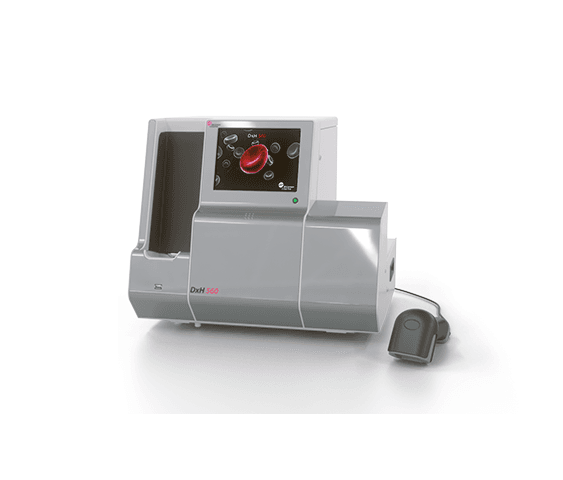

DxH 560 AL Hematology Analyzer

Save time and resources, eliminate unnecessary intervention and deliver high-quality results, even for difficult-to-draw patient groups, with the DxH 560.

  • Save time and resources: with a multi-tube, compact hematology analyzer that has proven reliability, paperless data management and autonomous instrument daily cleaning
  • Available when you need it: the DxH 560 is engineered for high uptime and system reliability at less than one service call per year
  • Eliminate system readiness delays: experience hands-free, autonomous daily cleaning and startup. The DxH 560 was designed with reliability in mind and allows for high walkaway time with autonomous daily start-up and system checks, hands-free daily cleaning, plus simple and few reagent replacements for maximized uptime
  • Load and go up to 50 samples: with on-the-fly continuous loading more than twice the capacity compared to the closest competitor

Description

Overview

Small and mighty, because good things come in small packages.

Save time and resources, eliminate unnecessary intervention and deliver high-quality results, even for difficult-to-draw patient groups, with the DxH 560.

  • Save time and resources: with a multi-tube, compact hematology analyzer that has proven reliability, paperless data management and autonomous instrument daily cleaning
  • Available when you need it: the DxH 560 is engineered for high uptime and system reliability at less than one service call per year
  • Eliminate system readiness delays: experience hands-free, autonomous daily cleaning and startup. The DxH 560 was designed with reliability in mind and allows for high walkaway time with autonomous daily start-up and system checks, hands-free daily cleaning, plus simple and few reagent replacements for maximized uptime
  • Load and go up to 50 samples: with on-the-fly continuous loading more than twice the capacity compared to the closest competitor

Training

Select Tips & Tools to access helpful documents and information for your instrument.

Step 1: To access content such as job aids, checklists, In-Lab Training Manuals, etc., select the Tips & Tools link in the top left navigation.

Step 2: Select the product name.

Step 3: You will be directed to the product page and access to the product-specific content.



Specification

Mode of Operation

Autoloader, 50 tube continuous feed capacity, open-tube mode

Sample Volume

17 μL of venous or micro-collected whole blood

Throughput

55 closed-tube samples per hour, 60 open-tube samples per hour

Menu/Test Parameters

WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, LY%, LY#, MO%, MO#, NE%, NE#, EO%, EO#, BA%, BA#

RUO Parameters

IMM%, IMM#, LHD, MAF, PCT,PDW

Data Storage

30,000 patient results, including graphics, flags, codes and messages

QC Package

12 control files, each with a maximum of 150 runs, LJ plots, XB, XM and eIQAP with QC auto rerun

User Interface

Integrated 8.4 inch high resolution color touch screen; Handheld barcode

Power Requirements

  • 100–240 VAC 50–60 Hz
  • Single phase with ground Less than 120W

Carryover

<1.00% for WBC, RBC, HGB, PLT and 5-part differential

Ambient Temp/Altitude

18–32°C (64.4–89.6°F) / Up to 3,000 meters (9,842 feet)

Humidity

80% relative humidity (non-condensing) at 32°C (89.6°F)

Altitude

Up to 3,000 meters (9,843 feet)

External Storage

Supports USB 2.0 (five ports)

LIS

Bidirectional interface supports Ethernet communication via RJ45 and Serial RS-232 communication

Printer

Optional USB printer; laser or ink jet

Languages

Czech, English, French, German, Iberian Portuguese, Italian, Japanese, Romanian, Spanish, Russian

Weight and Dimensions

  • WIDTH 500 mm (19.7 in.)
  • HEIGHT 440 mm (17.3 in.)
  • DEPTH 460 mm (18.1 in.)
  • WEIGHT 22.0 kg (48.5 lbs.)
