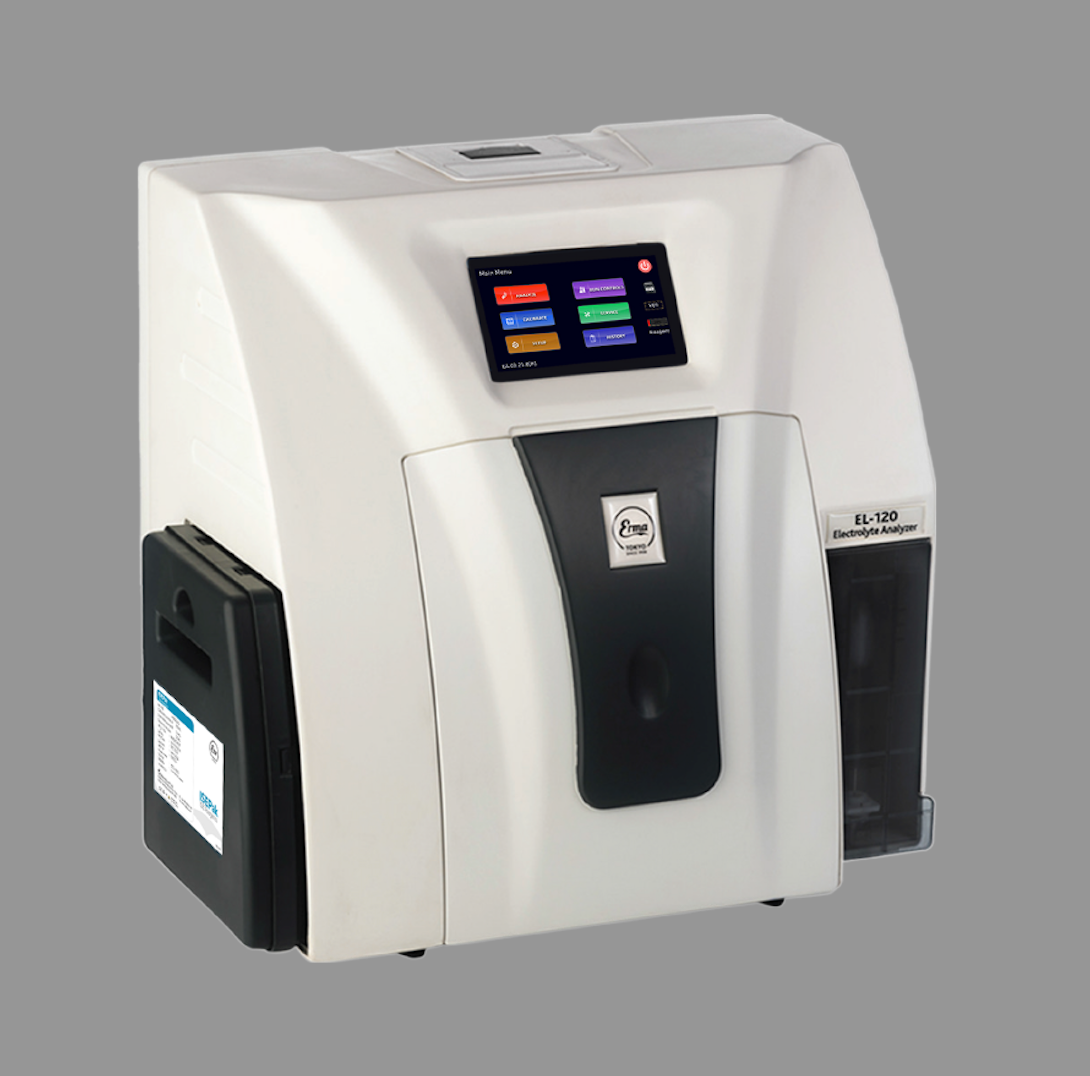

EL-120 Electrolyte Analyzer

EL-120 Electrolyte Analyzer

EL-120 Electrolyte Analyzer allows measurement of specific ions, accurately and precisely. This supports fast diagnosis of critically ill patients and reduces the risks of patient discomfort associated with repeated sampling.

Enquire Now
Categories , ,

Description

EL-120 Electrolyte Analyzer allows measurement of specific ions, accurately and precisely. This supports fast diagnosis of critically ill patients and reduces the risks of patient discomfort associated with repeated sampling.

Salient Features:

  • Na+, K+, CI–, iCa++, pH, Li+
  • Low sample volume and cost per test
  • Onboard reagent tracking system
  •  Calibration interval after 4 hrs. / 8 hrs. / 12 hrs.
  • In-built quality control with LJ plots
  • Large touchscreen display with graphical user interface.

Technical Specifications:

Parameter Description
Principle Ion selective Electrode (ISE)
Sample Types Serum, Plasma, Whole Blood, Urine, CSF
Parameters Na+, K+, CI–, iCa++, pH, Li+
Sample Volume ≤ 90µL
Analysis Time ≤ 60 secs
Throughput ≤ 60 samples per hour
Precision
  • CV %
  • Na+ : ≤ 1%
  • K+ : ≤ 1%
  • CI– : ≤ 1%
  • iCa++: ≤ 1.5%
  • pH : ≤ 0.5%
  • Li+ : ≤ 1.5%
Calibration
  • Automatic Calibration:
  • User-defined two-point calibration interval – 4 hours / 8 hours / 12 hours
  • One Point Calibration with each sample analysis
Normal Ranges User defined normal ranges for all sample types with flagging for abnormal samples
Data Management Calibration History, Sample History and Control History of last 30 days
Quality Control Tri-Level Quality Control, with L J Plots of last 30 days
Display 5″ color LCD with Touchscreen Display, Resolution: 480 x 272 pixels
Sample Storage 10,000
Printer Built-in 2″ (48 mm) Thermal Printer, 42 characters wide
External Interface USB (Mouse, Keyboard, Barcode reader, Pen drive)

Main Menu:

  • Large Graphical Display affords convenience of Operation and Minimizes Errors while Entering Data
  • User Friendly Software with Interactive Graphical User Interface •
  • Shortcut Menu Keys for Easy Operation.

Analysis:

  • Automatic flushing after aspiration of every sample to eliminate carryover.
  • Precise & Accurate Result
  • Aspiration System: Internal Peristaltic Stepper Motor Pump for Accurate and Precise aspiration of Analytes.

Electrodes:

  • Electrodes are based on Ion Selective Principle.
  • Electrodes can be refilled.
  • Long life and Assured Stability

ISEPak:

  • Convenient to place ISEPak which contains reagents required for all parameters .
  • Integrated reagent Pack for testing of All Parameters .
  • In-Built Reagent Inventory Management Software.

CALIBRATION:

  • Two Point Calibration after 4 hrs/ 8 hrs or 12 hrs. Programmable as per user.
  • Also Displays the Date and Time of next Calibration to be Performed / Due.
  • One Point Calibration with each Sample Analysis.
  • Display Status of Calibration with Date and Time for each parameter.

RUN QUALITY CONTROL:

  • Levy Jennings plot of daily and monthly QC data to assess the performance.
  • Helpful for laboratories incase of Accreditation and Quality Assessment.

URINE DILUENT AND DEPROTEINIZER:

Urine Diluent : Used for the Dilution of Urine Samples to Quantitatively determine Urine Electrolytes. Deproteinizer : Used for the Cleaning and Maintenance of Electrolyte Analyzer.
