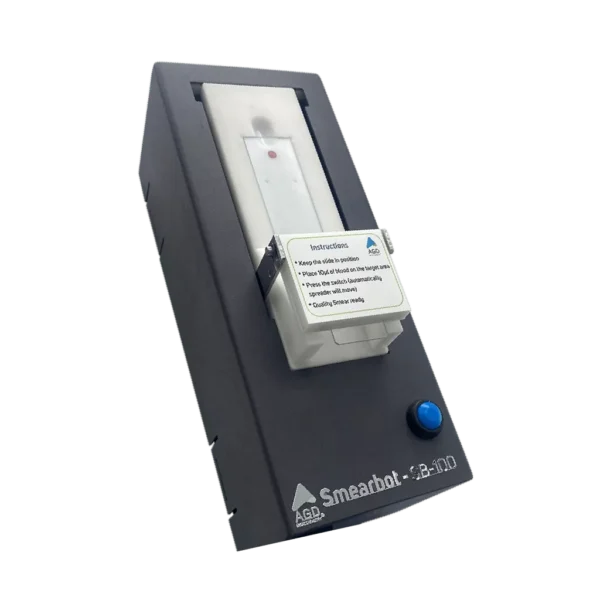

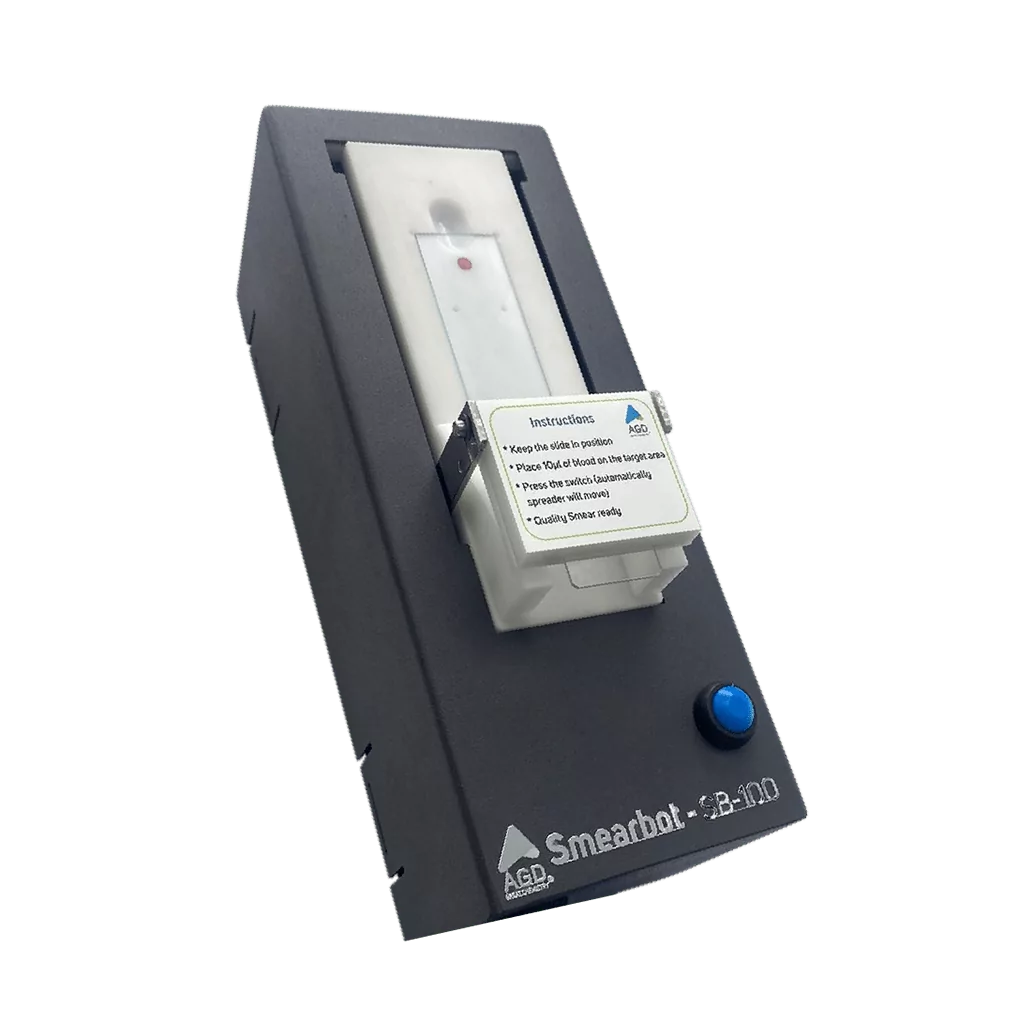

SB-100 Smearbot

Description

SB-100 is an automated, compact and tabletop instrument for preparing blood smear. It works on traditional “Wedge or Push Technique”.

►Creates a uniform monolayer of dispersed cells in a blood smear.

► Standardizes the quality of smears irrespective of staff experience.

► Prepares smear for routine and especially haematological diagnosis of Leukemia and Anemia.

► Smears can be prepared using body fluids

► Speed provision for different haemoglobin concentrations.

► Cost effective and improves lab’s TAT as it reduces number of repeat smears.

Parameter	Specification
Method	Wedge or push technique
Sample quantity	10 µL
Spreader	Angle: 30° Material: Glass slide Speed: 50 – 100 mm/sec
Dimension (L × W × H)	225 × 95 × 120 mm
Weight	2 Kg
Power consumption	9V DC, 1A Power adapter with input voltage of 110–270 VAC, 50Hz, 9W

Sample Quantity	Haemoglobin Concentration (gm/dl)	Speed
10 µL	2 – 5	7
10 µL	6 – 9	6
10 µL	10	5
10 µL	11 – 13	4
10 µL	14 – 16	3
10 µL	17 – 18	2
10 µL	18 – 20	1
